Sealers
Screw tops, child-resistant taps, corks & more….
Pack Leader CP-10 Cap Tightener
Automated cap tightening and re-torquing
Overview: The CP-10 is a durable, precision-engineered semi-automatic capping machine designed for smooth, consistent performance. Built from SS-304 stainless steel, it provides torque-controlled capping for a wide range of bottle and cap sizes, making it ideal for food, beverage, cosmetics, and pharmaceutical applications.
Features & Benefits:
Torque-Controlled Head: Ensures precise, consistent tightening and prevents over-torquing.
Integrated Conveyor: Siemens-driven conveyor with bottle stabilizers and adjustable guide rails.
User-Friendly: Touchscreen controls with Panasonic PLC and Delta HMI interface; easy parameter adjustments.
Efficient Operation: Built-in bottle jam sensor, production counters, and memory slots for product setups.
Compatibility: Integrates seamlessly with FL-12 and FL-14 filling systems.
Durability: CE certified, GMP & ISO 9001 compliant for long-term reliability.
Key Specifications:
Capping Range: 20–40mm caps
Bottle Diameter: 20–100mm; Height up to 300mm
Speed: Up to 30 m/min (≈30 bottles/min)
Dimensions (L x W x H): 78.7” x 38.6” x 73.2”
Power: 220V, 50/60Hz, 1 Phase
Construction: 304 Stainless Steel & Anodized Aluminum
Ideal Applications:
Perfect for producers in the food, beverage, nutraceutical, cosmetic, and pharmaceutical industries seeking reliable, semi-automatic capping with precision and flexibility.
Downloads

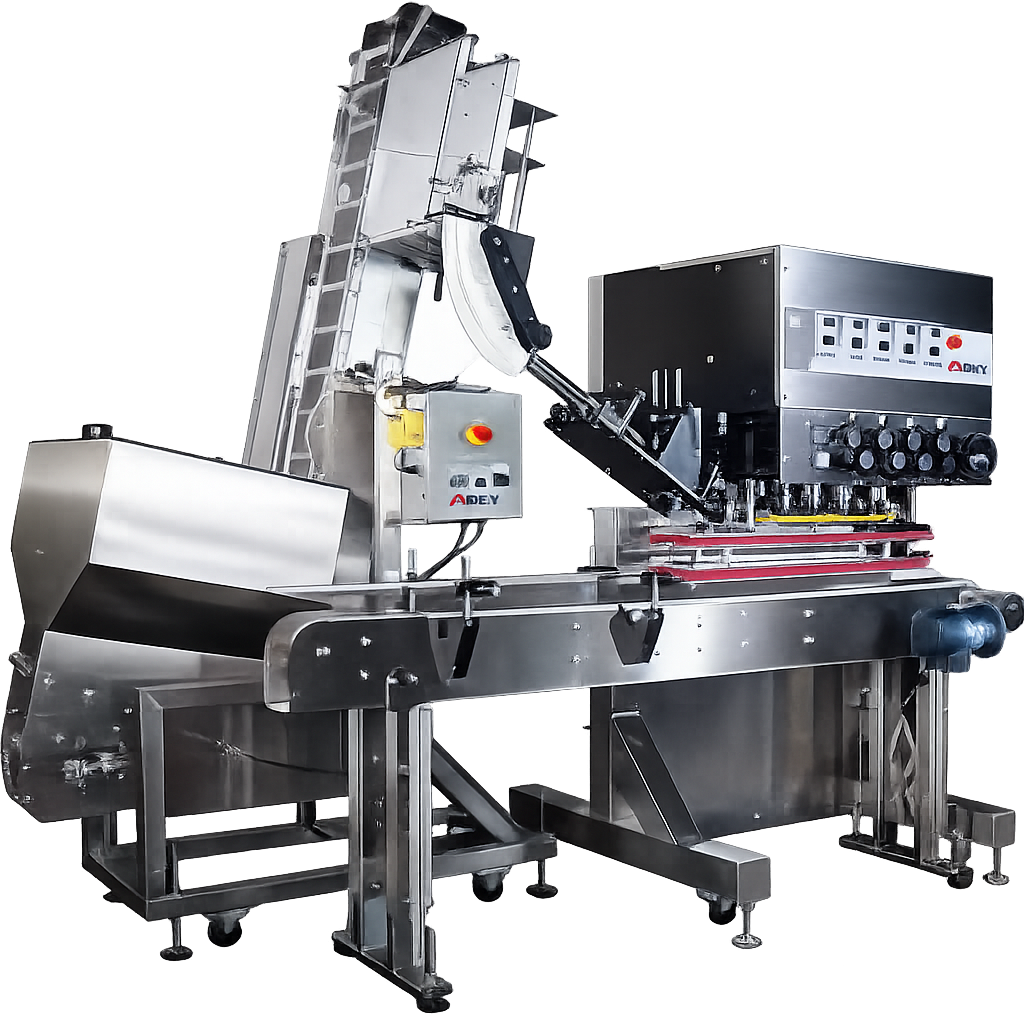

Apex Spindle Tightener
High-Speed Cap Tightening
The Apex Spindle Capper & Tightener is a highly versatile in-line capping solution designed to place and accurately torque nearly any threaded cap type. Engineered for durability and flexibility, this system can apply and tighten flat caps, flip-top caps, pull spouts, safety caps, childproof caps, sport caps, overcaps, and induction caps across a wide range of container styles.
Built on a heavy-duty, TIG-welded stainless steel frame with anodized aluminum construction, the Apex spindle capper delivers long-lasting performance in demanding production environments. Its modular design allows operators to start with a cap tightener configuration and easily expand capabilities as production grows. Capper, Spindle
Available Configurations:
6 or 8 Spindle Wheels
Choose between 6-spindle or 8-spindle configurations depending on desired torque control and throughput.
Cap Tightener or Full Placement System
Available as a standalone tightener or fully integrated with cap sorting and delivery systems.
Key Specifications:
Frame: Heavy-duty 304 stainless steel free-standing frame
Motors: Variable speed SEW AC motors
Cap Size Range: 8mm to 110mm
Container Height Range: 1” to 14”
Spindle Adjustment: Adjustable spindle clutches on final tightening set

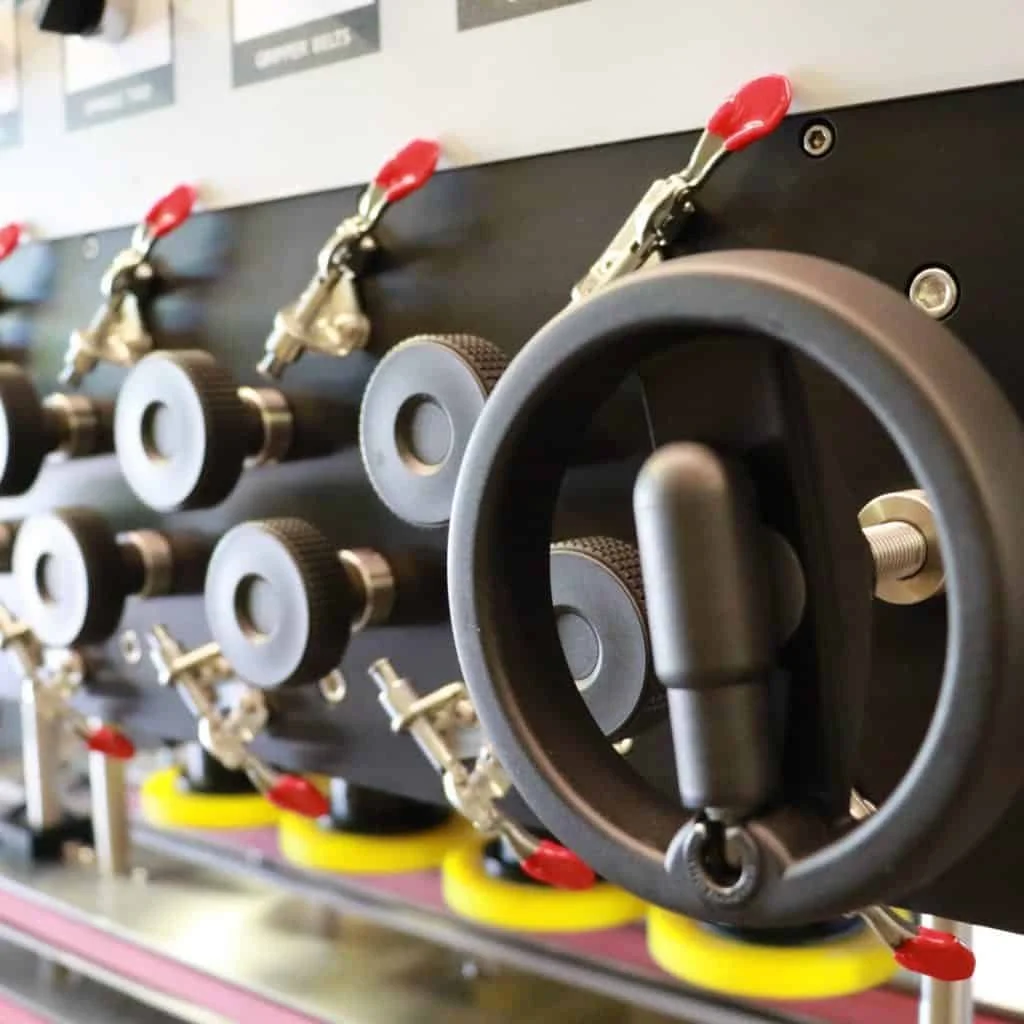

Changeover: Tool-free adjustments with locking knobs

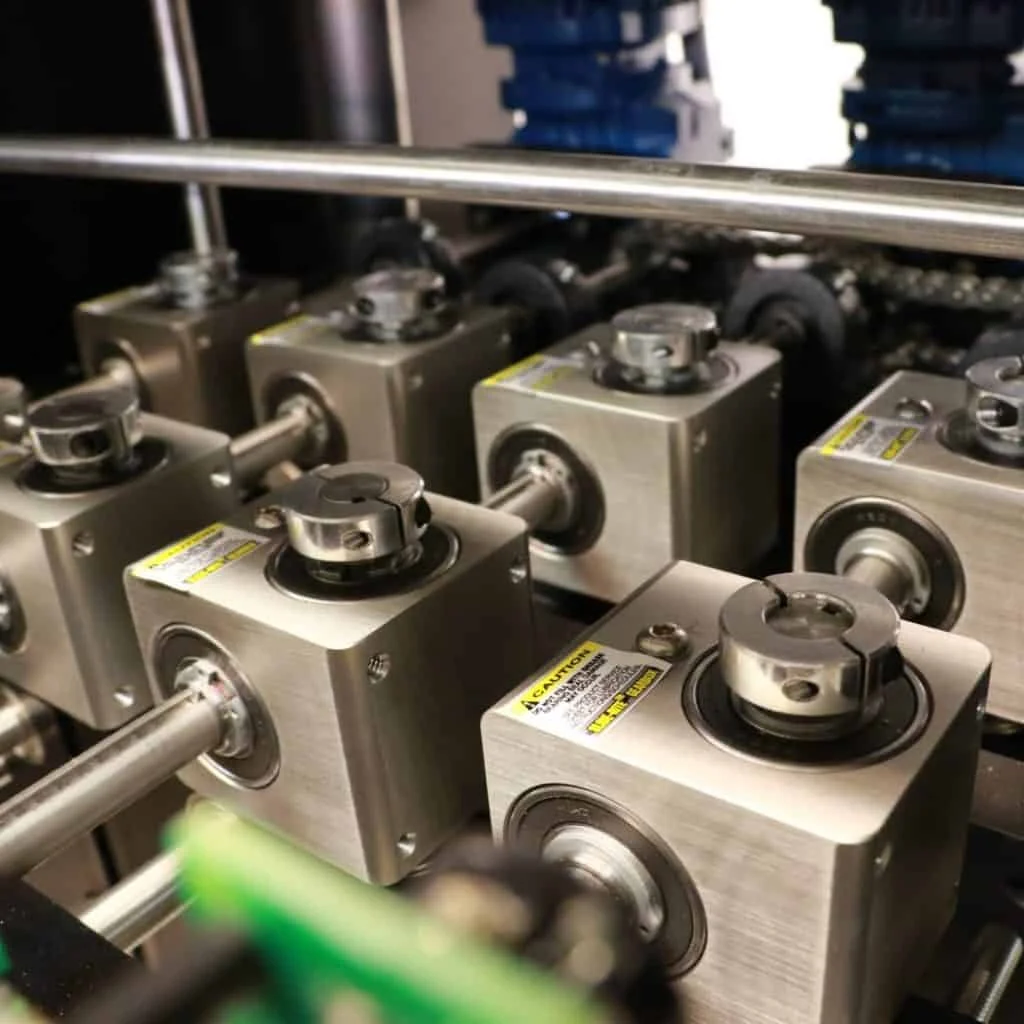

Drive Components: 304 stainless steel drive shafts and support shafts
Country of Origin: Made in the USA Capper, Spindle
Features & Benefits:

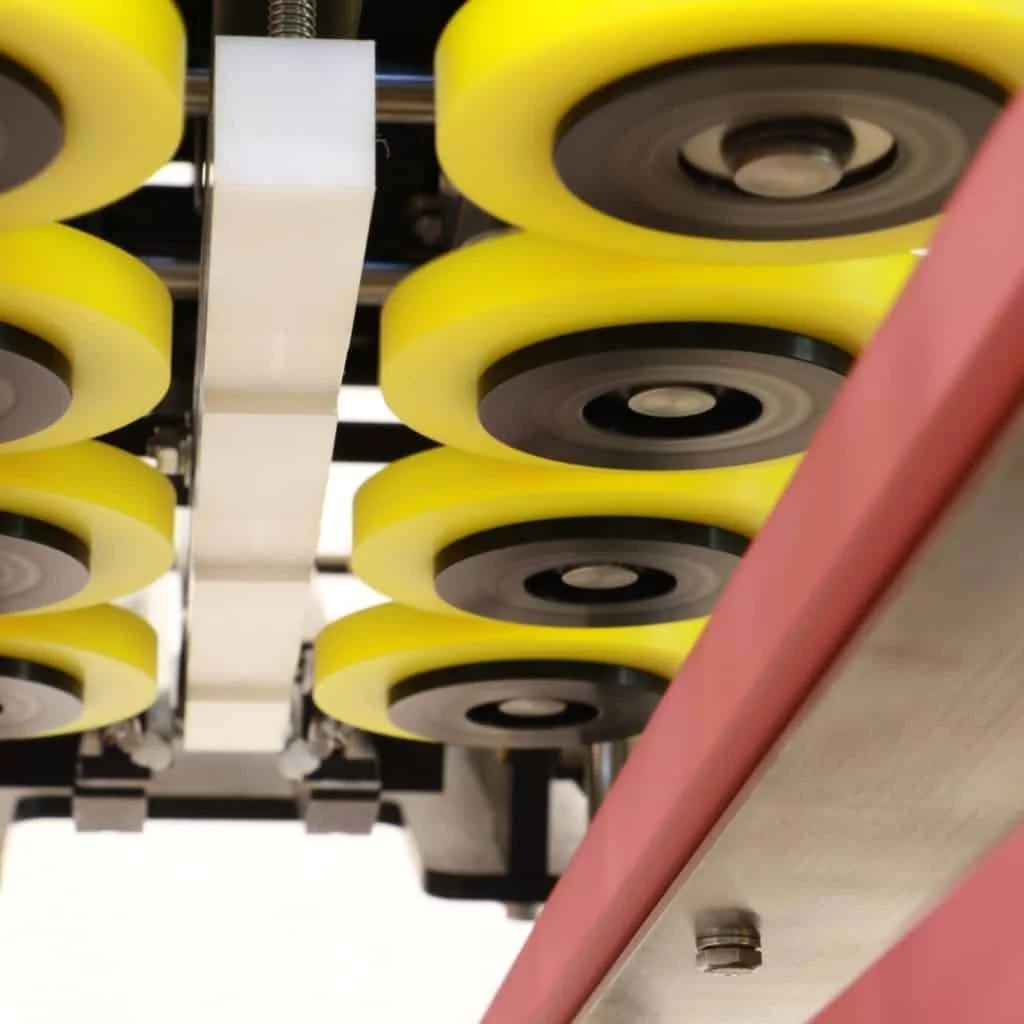

Tool-less gripper belt height and width adjustment

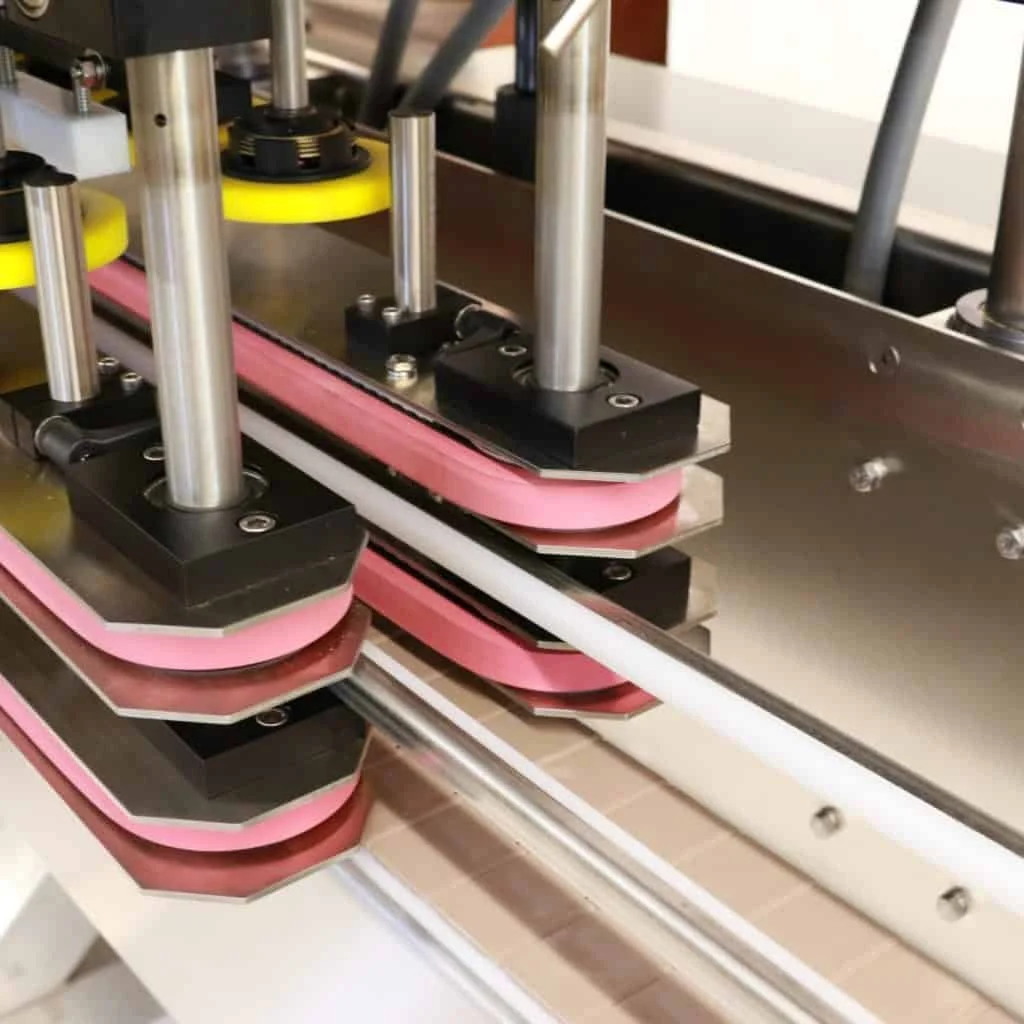

Removable dual gripper belts
No change parts required for a wide range of containers
Universal cap chute
Power height adjustment
Designed for easy integration with most conveyor configurations
Durable construction suitable for harsh or hazardous environments
Fast, simple changeovers for multiple container sizes Capper, Spindle
Optional Upgrades:
Vibratory bowl cap sorter
Centrifugal bowl cap sorter

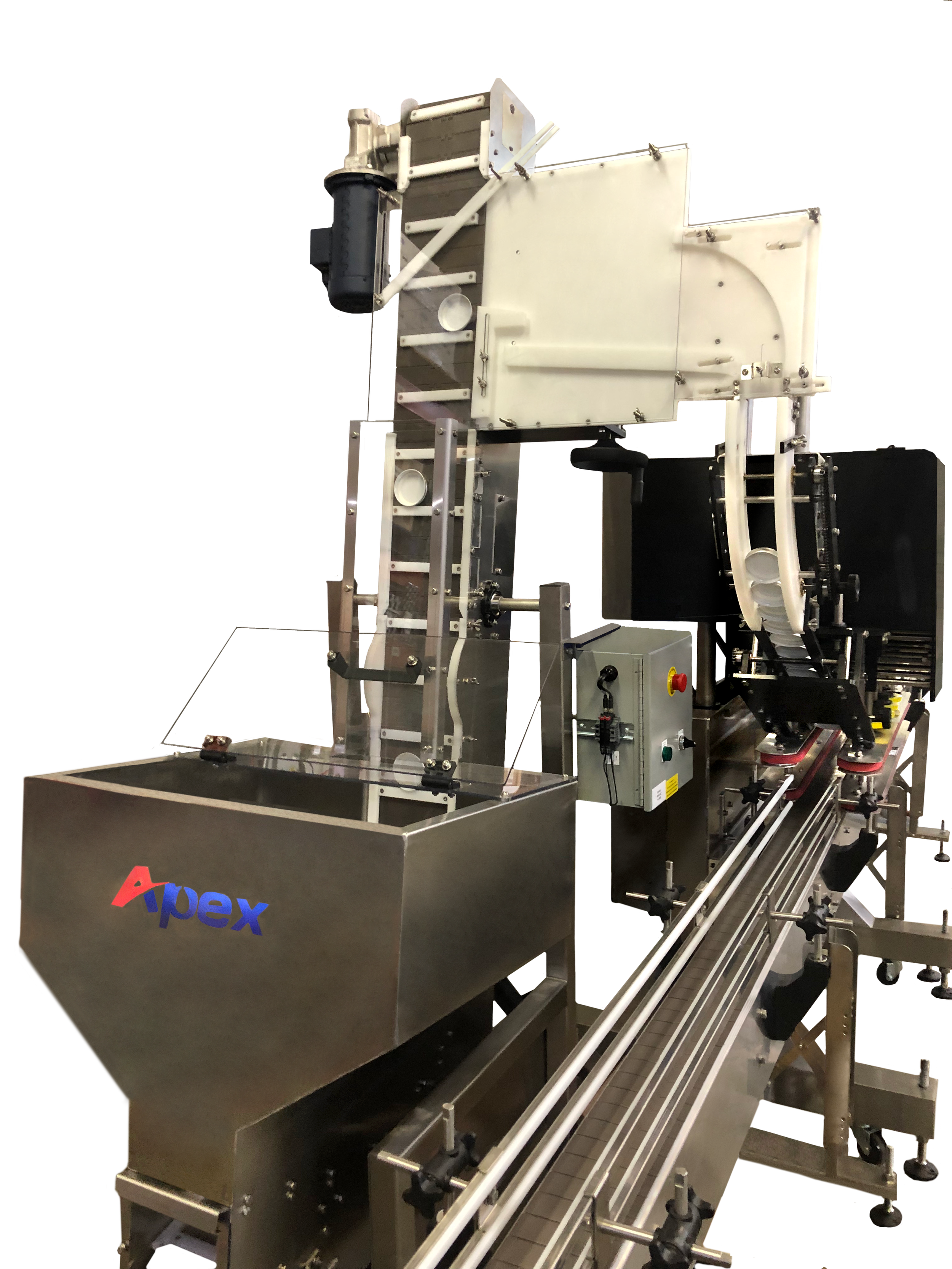

Sorting elevator
Trigger spray cap rails
F-style spacer
Reversible first spindle set (8-spindle models)
Hazardous location construction (Class I, Division II, Groups C & D) Capper, Spindle
Ideal Applications:
Will work with most containers and caps including flat caps, sifter caps, continuous thread metal lids, and many others. Common industries include personal care, nutraceuticals, beverage, cosmetics, pharmaceuticals, household chemicals, and petroleum products.
