Apex Gravity Filler

Our Take: Simple & Reliable Filling for Free-Flowing Liquids

If you are filling low-viscosity, thin liquids—from spirits and oils to household cleaners—gravity filling is often the smartest, most cost-effective path to automation. We love Apex’s gravity fillers because they optimize simple, elegant designs at a more affordable price compared to other filling technologies.

Why we recommend the Apex Series:

• Versatile Scalability: This series is designed to grow with you. The Economy Filler is the perfect entry-level solution, offering a low-cost, semi-automatic starting point with up to four fill heads that can be upgraded to fully auto. For higher-volume lines, the Pro Series serves as the upgraded industrial workhorse, capable of scaling up to 16 fill heads to handle significant production demands.

• Simple, Durable Design: Minimal moving parts and a user-friendly touch screen interface.

• Precision and Cleanliness: The volumetric time-based filling method produces repeatable, accurate results across a wide variety of applications, including food and beverage, pharmaceutical, and even corrosive environments.

Overview:
The Apex Gravity Filler is a low-cost, entry-level automatic filling solution designed for thin to medium-viscosity liquids. Utilizing a volumetric, time-based gravity filling method, this system delivers accurate, repeatable fill volumes for products with consistent flow characteristics.

Ideal for small to mid-scale production, the Gravity Filler offers dependable performance, simple operation, and fast delivery for growing operations.

Available Configurations: 1 to 16 Fill Heads

Features & Benefits:

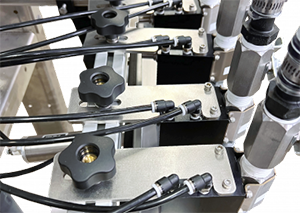

• Adjustable throttling valves on each fill head for precise flow control

• Repeatable and accurate fill volumes

• Compact footprint for smaller production areas

• Front panel start and emergency stop controls

• Stainless steel construction for durability and longevity

• Quick delivery for fast project implementation

• Suitable for sanitary, hazardous, flammable, and corrosive environments

Key Specifications:

• Fill Method: Volumetric time-based gravity fill

• Viscosity Range: Thin to medium viscosity liquids

• Construction: Heavy-duty 304 stainless steel free-standing frame

• Fill Assemblies: 316 stainless steel

• Controls: PLC with user-friendly touchscreen HMI

• Electrical: 120V, 20 Amp

• Air Requirements: 80 PSI @ 2 CFM+ (more fill heads will require higher CFM)

• Product Control: Float system with manual product inlet valve

• Country of Origin: Made in the USA

Optional Upgrades:

• Stainless steel drip tray

• Automatic bottle indexing

• Poly product reservoir

• Sanitary upgrade for fill heads and reservoir

Ideal Applications: Water, Distilled spirits, CBD and essential oils, Vape and e-cig liquids, Household chemicals, Detergents, Degreasers, Paints and stains
