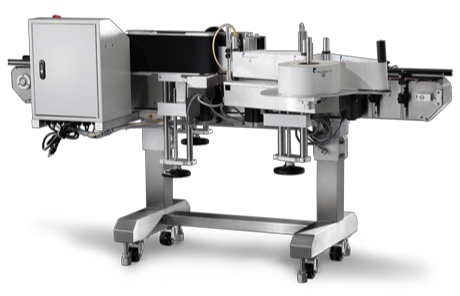

Pack Leader PL-501 Wrap-Around Label Applicator

Our Take: We’ve put the PL-501 through the ringer so you don’t have to. After years of running these units through millions of cycles, the bottom line is: the PL501 shows up every day. While other labelers struggle with environmental changes or high-volume fatigue, this unit offers unmatched reliability and ease-of-use across a variety of applications.

Reliable labeling shouldn't be a luxury. We consider this machine the gold standard for round containers because it’s built with high-grade 304 stainless steel and anodized aluminum to survive harsh environments and 24/7 schedules. If you’re tired of machines that need constant "babysitting" or deal with the dreaded "naked bottle" reaching your customers, the PL-501 is the upgrade your line needs. It’s fast, it’s durable, and most importantly, it’s proven.

Overview:
The PL-501 is a fully automatic labeling machine designed for round containers, offering exceptional speed, flexibility, and dependability. It's ideal for high-volume production environments requiring consistent and accurate labeling.

Key Specifications:

• Label Type: Wrap-Around (One Side Apply Optional)

• Maximum Dispensing Speed: 131.2 ft/min (40 m/min)

• Maximum Conveyor Speed: 72.2 ft/min (22 m/min)

• Dimensions (L x W x H): 79” x 40” x 41” (2006mm x 1016mm x 1041mm)

• Maximum Label Size: 6” x 11.8” (152mm x 300mm)

• Maximum Container Width: 4” (101mm) standard; 6” (152mm) optional

• Conveyor Belt Width: 3.25” (82.55mm)

• Conveyor Height: Adjustable from 31.75” to 47.75” (806mm to 1213mm)

• Spool Diameter: 14” (356mm)

• Inner Core: 3” (76mm)

• Power: 110/220 VAC, 50/60 Hz, 1 Phase; 0.760 kW; Stepper Motor

• Net Weight: Approx. 330 lbs (150 kgs)

Features:

• Flexible Design: Easily adjusts to apply labels to round containers; one-touch screen for label application.

• User-Friendly: Built-in operating instructions, memory presets, and troubleshooting guide.

• Easy Maintenance: Constructed from 304 stainless steel and anodized aluminum for durability and compliance with Good Manufacturing Practices (GMP).

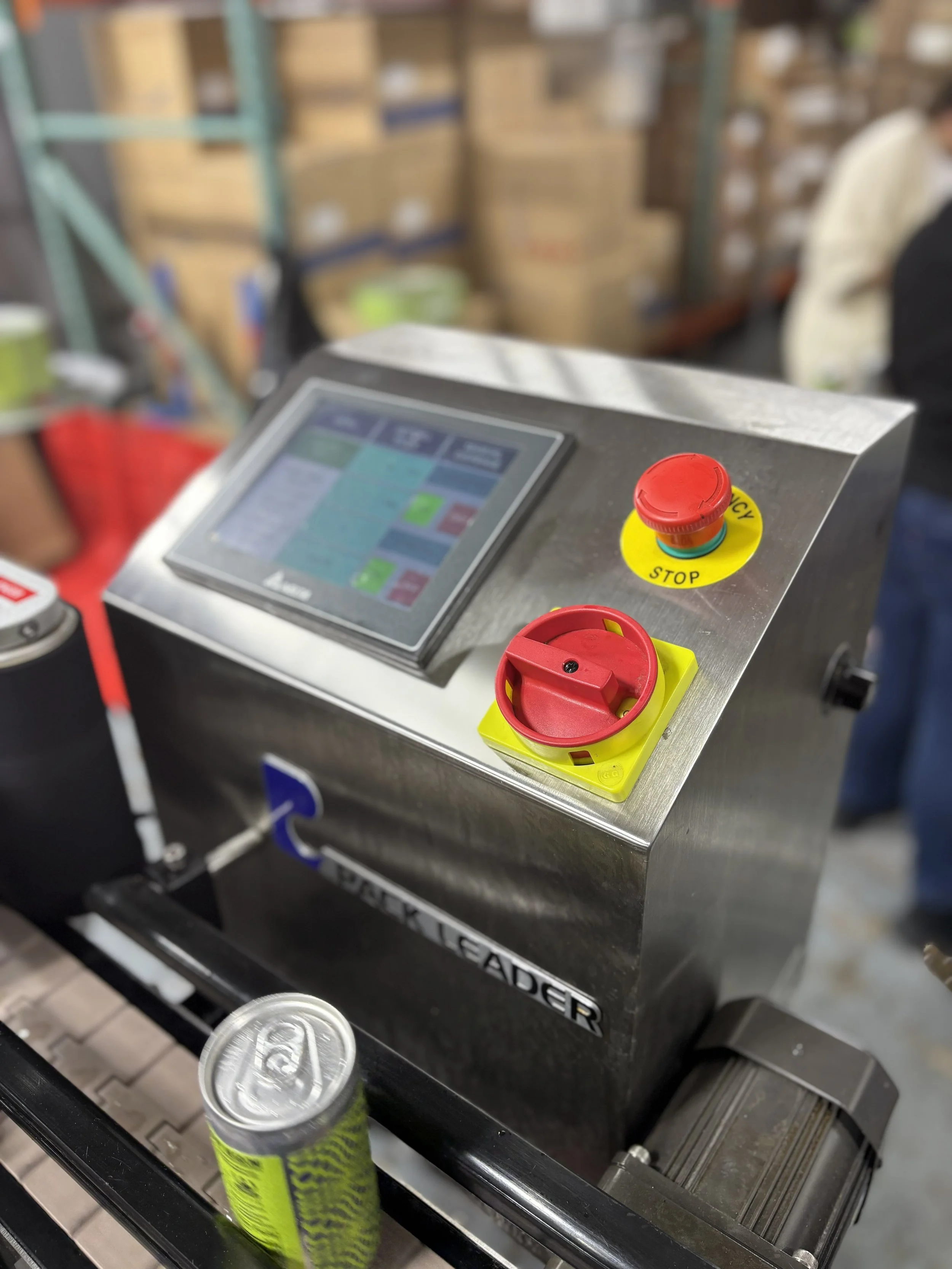

• Advanced Controls: Delta color touchscreen interface; up to 30 job memory presets.

• Productivity Enhancements: Auto label-set feature, missing label detection, and production counters.

• Portability: Adjustable conveyor height and mobility for flexible production setups.

Ideal Applications:
Suitable for labeling a wide range of round containers in industries such as food, beverage, cosmetics, and pharmaceuticals.
