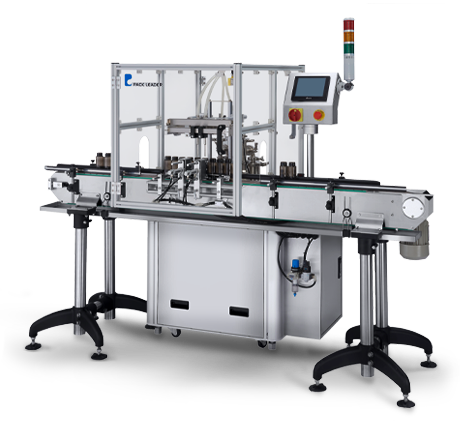

Pack Leader FL12 / FL14 Inline Piston Filler
Two- and four-head automated filling for a wide variety of products
Pack Leader FL-14 (4-head) filling hot sauce
Pack Leader FL-12 (2-head) filling hot sauce
Our Take: If you are looking for versatility in filling machines, the Pack Leader FL-12 and FL14 is the answer. Whether you are working with thin, watery liquids or thick, high-viscosity pastes, this machine can handle it. It is built with high-grade S304 stainless steel and features SS-316 tube filling pumps , ensuring it stands up to the rigors of your environment while remaining compliant with GMP standards. Hot fills? No problem! Run your product at up to 190 degrees F.
This machine can fill a wide range of container sizes with less than 0.05% accuracy, allowing you to run multiple sku's with no risk of high fill variance.
Overview:
The FL-12 is a compact, fully automatic liquid filling machine designed for efficiency and precision in small- to medium-scale production. Built from S304 stainless steel with high-grade SS-316 filling pumps, it offers a clean, reliable, and easy-to-operate filling solution.
Features & Benefits:
Touchscreen control panel with memory presets for multiple products
Servo-driven system ensures precision filling with ±1% accuracy
Compatible with CP-10 capping and PL-series labeling machines for inline automation
Compact footprint ideal for limited production spaces
GMP & ISO 9001 compliant stainless-steel construction
Built-in jam sensor and variable-speed motor for smooth operation
Key Specifications:
Filling Range: 10–1000 mL
Filling Speed: 15–30 bottles per minute (depending on fill volume)
Filling Methods: Above liquid, underneath liquid, and bottleneck filling
Bottle Diameter: 20–100 mm
Bottle Height: 50–250 mm
Dimensions (L x W x H): 78.7” x 39.4” x 72.4” (2000mm x 1000mm x 1840mm)
Power: 220V, 1 Phase, 0.84 kW, Servo Motor
Net Weight: 330 lbs (150 kg)
Ideal Applications:
Suitable for labeling a wide range of products and containers in industries such as food, beverage, cosmetics, and pharmaceuticals.
Downloads

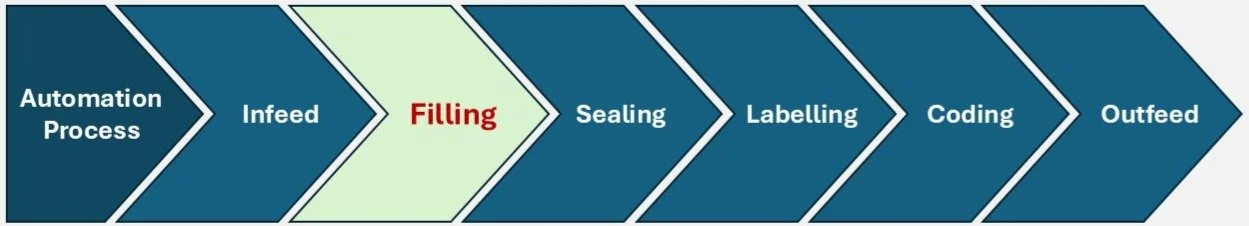

Upstream Automation
The Fl12 / FL14 filler can be loaded by hand with a rotary table or automatically by a depalletizer or other automated processes.
Infeed
Downstream Automation
The FL Piston Filler can be the only automated step in your packaging line, or can feed directly into a cap applicator/sealer. Many businesses start with this unit as a standalone, then add automation downstream as they grow. The design allows for fast, seamless transition to the next star

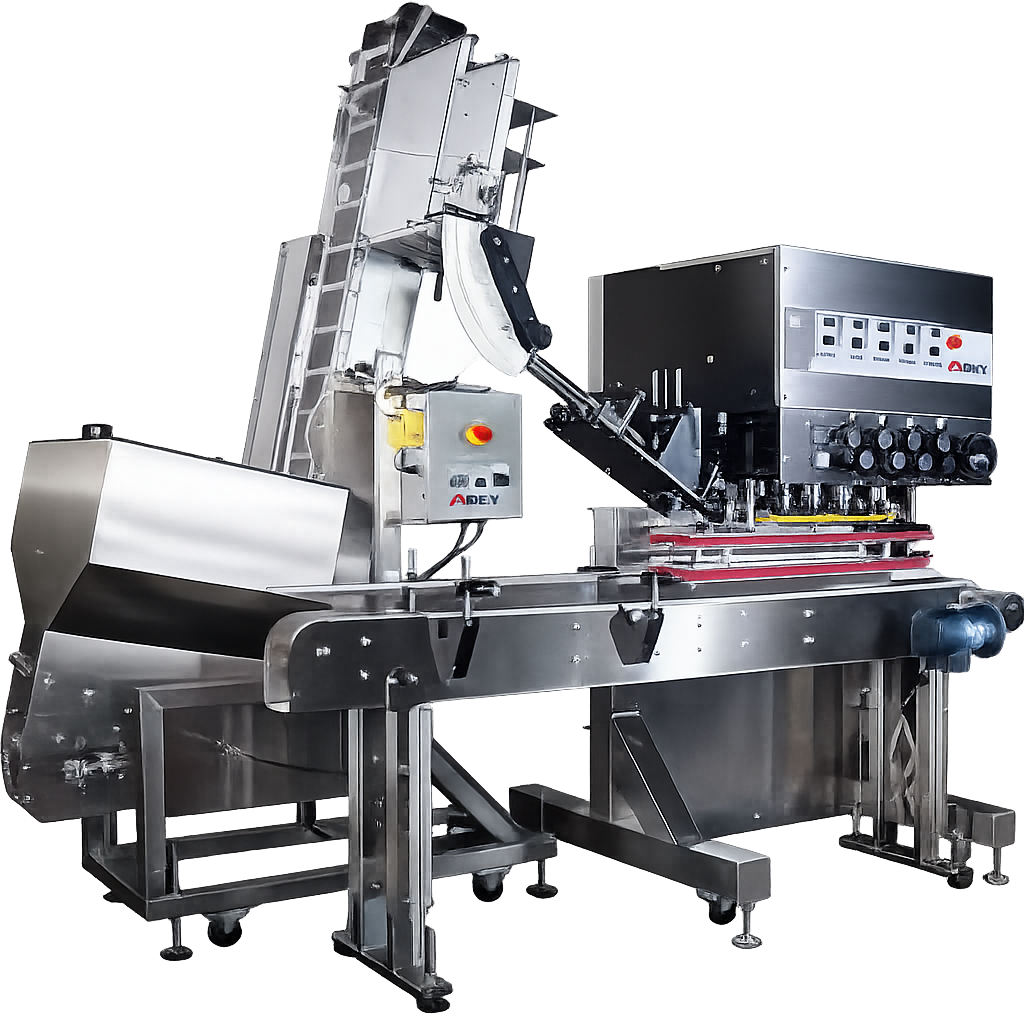

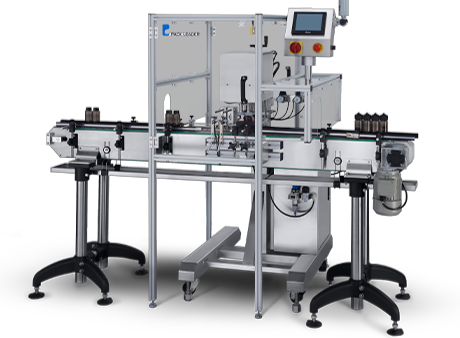

Cap Application / Tightening
Label Application
Some producers opt to fill automatically, cap manually or with a handheld chuck, then hand-transfer onto an automated label applicator. This enables a high level of automation at an affordable price, while bypassing complications caused from multiple container and lid shapes/sizes.
