Apex Spindle Tightener
High-speed cap tightening for a variety of containers
Our Take: Our Take: The Ultimate Solution for Versatile Capping
If you are looking for a way to move away from the inconsistency of hand-tightening or the limitations of single-head cappers, the Apex Spindle Series is the most versatile choice for your line. We recommend this system because it isn't just a machine; it’s a modular platform that grows with your production demands. You can start with a cap tightener and easily upgrade to capping and tightening at a later date.
Why we recommend the Apex Spindle Capper:
Unmatched Versatility: This machine is a true "all-rounder," designed to accurately torque nearly any threaded cap—from standard flat caps and flip-tops to complex childproof and safety closures.
Rapid, Tool-Less Changeovers: Time is money on a production floor. The tool-less gripper belts and 4-axis cap delivery chute allow you to switch between different bottle and cap sizes in minutes, not hours.
Precision and Control: With adjustable spindle clutches on the final set of tightening wheels, you get the exact torque required for a perfect seal every single time, eliminating the risk of leaks or "naked bottles" reaching your customers.
The Bottom Line: The Apex Spindle Capper is our top recommendation for facilities that handle a wide variety of products and closures. It eliminates the physical strain and inconsistency of manual capping while providing a scalable, professional solution that fits seamlessly into almost any conveyor configuration. It is fast, durable, and—above all—proven to perform.

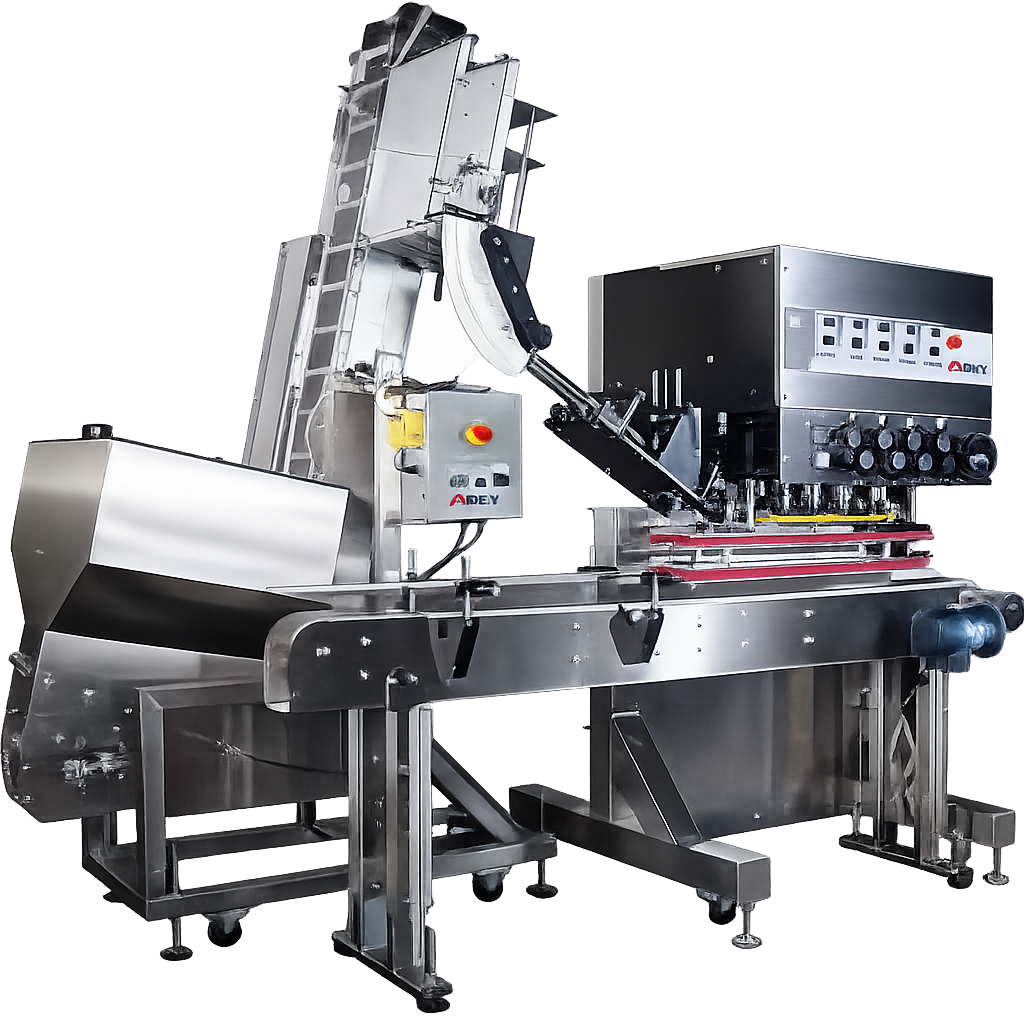

The Apex Spindle Capper & Tightener is a highly versatile in-line capping solution designed to place and accurately torque nearly any threaded cap type. Engineered for durability and flexibility, this system can apply and tighten flat caps, flip-top caps, pull spouts, safety caps, childproof caps, sport caps, overcaps, and induction caps across a wide range of container styles.
Built on a heavy-duty, TIG-welded stainless steel frame with anodized aluminum construction, the Apex spindle capper delivers long-lasting performance in demanding production environments. Its modular design allows operators to start with a cap tightener configuration and easily expand capabilities as production grows. Capper, Spindle
Available Configurations: 6 or 8 Spindle Wheels depending on desired torque control and throughput.
Cap Tightener or Full Placement System
Available as a standalone tightener or fully integrated with cap sorting and delivery systems.
Key Specifications:
Frame: Heavy-duty 304 stainless steel free-standing frame
Motors: Variable speed SEW AC motors
Cap Size Range: 8mm to 110mm
Container Height Range: 1” to 14”

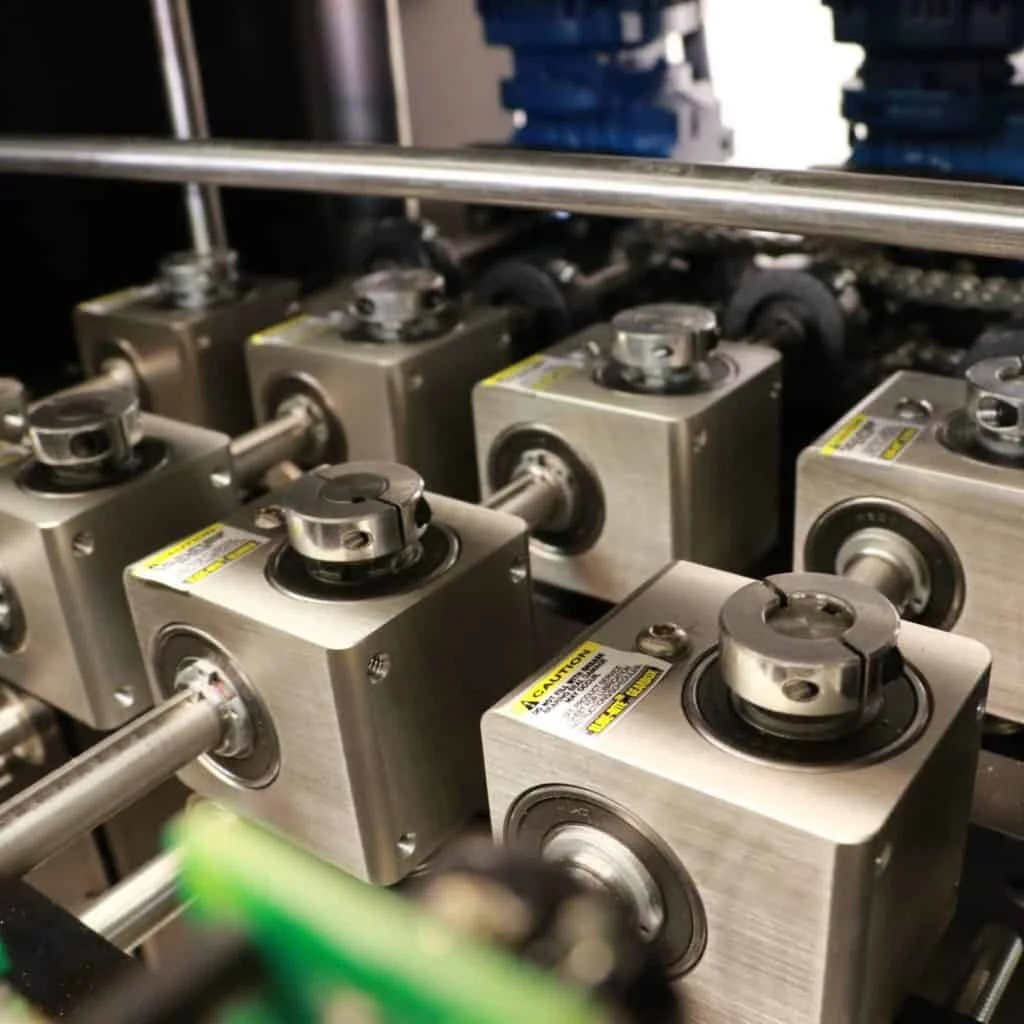

Spindle Adjustment: Adjustable spindle clutches on final tightening set
Changeover: Tool-free adjustments with locking knobs
Drive Components: 304 stainless steel drive shafts and support shafts
Country of Origin: Made in the USA Capper, Spindle
Features & Benefits:

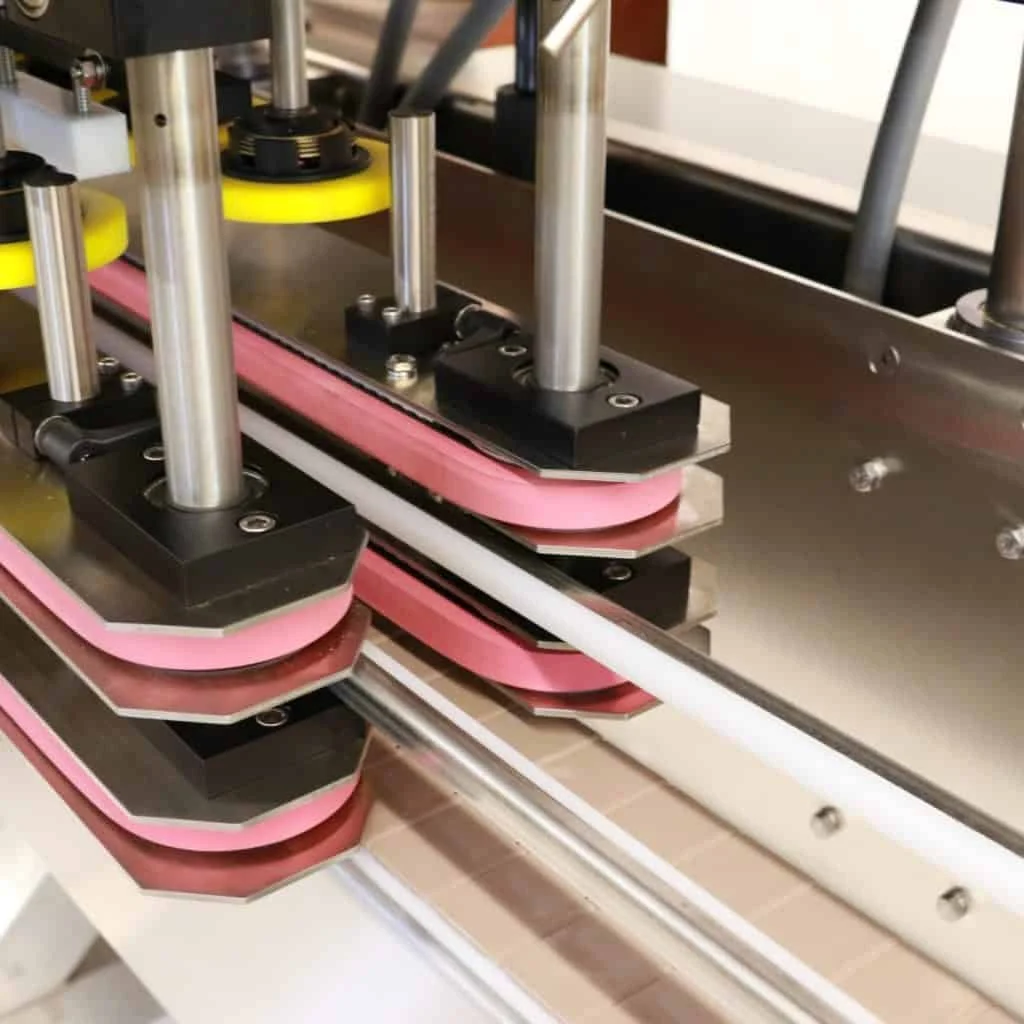

Tool-less gripper belt height and width adjustment
Removable dual gripper belts
No change parts required for a wide range of containers
Universal cap chute
Power height adjustment
Designed for easy integration with most conveyor configurations
Durable construction suitable for harsh or hazardous environments
Fast, simple changeovers for multiple container sizes Capper, Spindle
Optional Upgrades:
Vibratory bowl cap sorter
Centrifugal bowl cap sorter

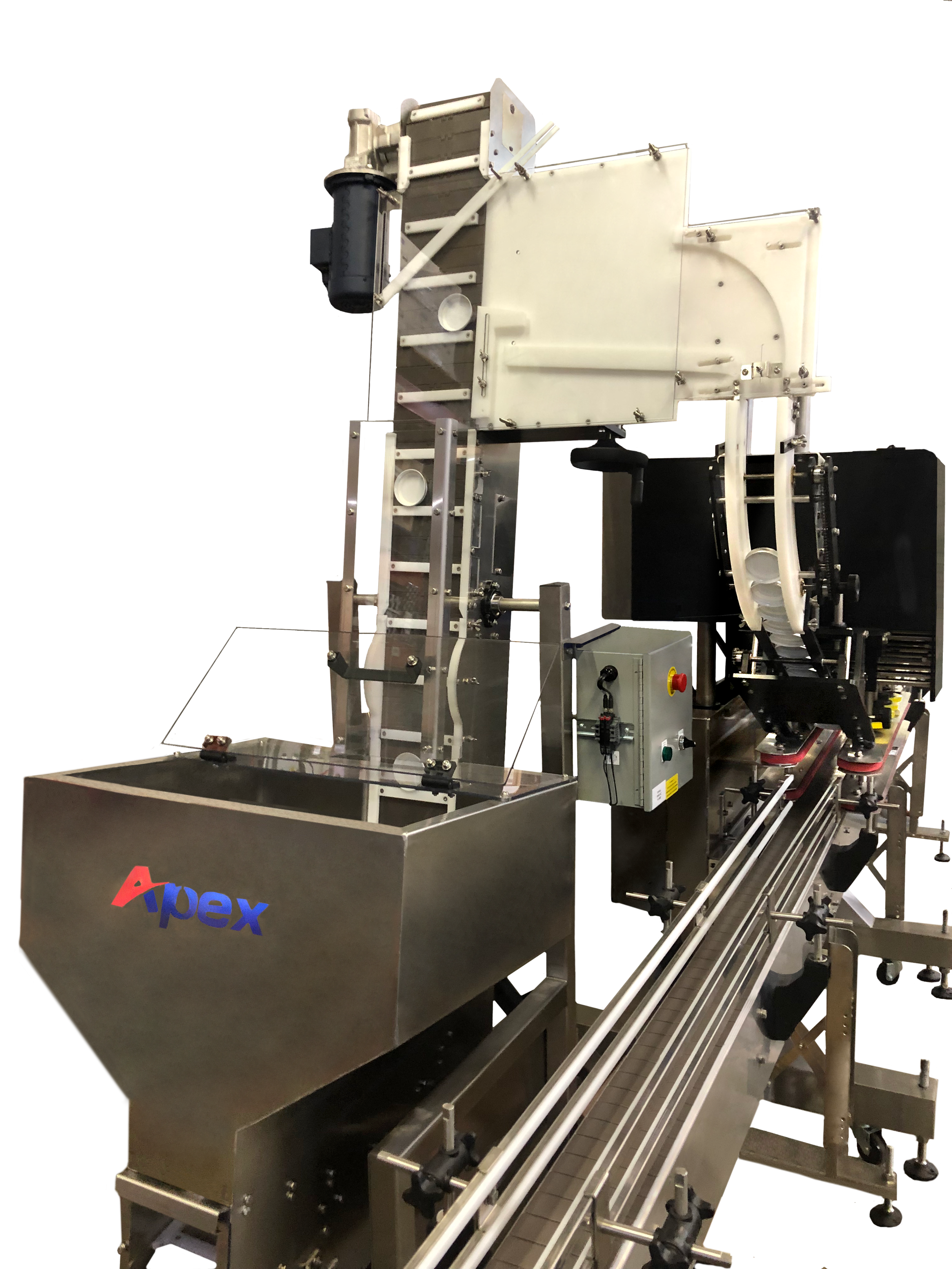

Sorting elevator
Trigger spray cap rails
F-style spacer
Reversible first spindle set (8-spindle models)
Hazardous location construction (Class I, Division II, Groups C & D) Capper, Spindle
Ideal Applications:
Will work with most containers and caps including flat caps, sifter caps, continuous thread metal lids, and many others. Common industries include personal care, nutraceuticals, beverage, cosmetics, pharmaceuticals, household chemicals, and petroleum products.
Downloads
Upstream Automation
The Apex Spindle Tightener is the natural next step following your filler to streamline the primary packaging process. Seamlessly add this machine at a future date as a phase two implementation; you can even start with just the tightener and add the cap sorter/applicator later on. This flexibility allows you to grow into your line and pace investment over time.
Fillers
Downstream Automation
Label applicators are, by design, modular. Many producers start with automated filling and manual capping, followed by an inline labeller. The beauty of the CP10 and other cap applicators is that, when you are ready for them, they seamlessly integrate between the filler and labeller for a fully automated solution.
