Wrap-Around Labelers for Round Containers
Bottles, cans, jars, tubes, you name it! If your container is round, these machines are what you need.

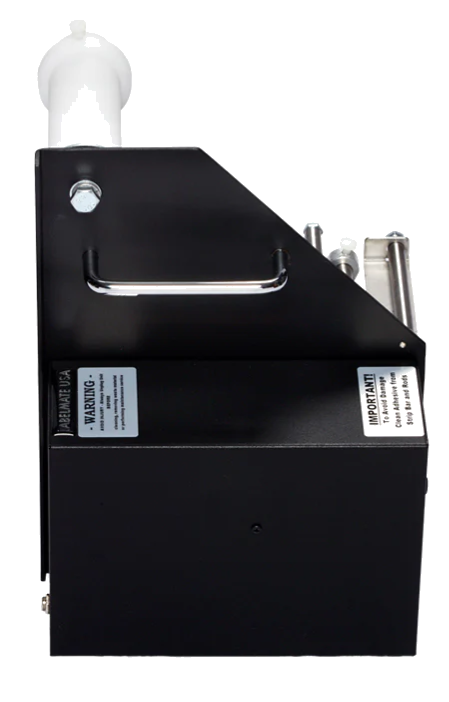

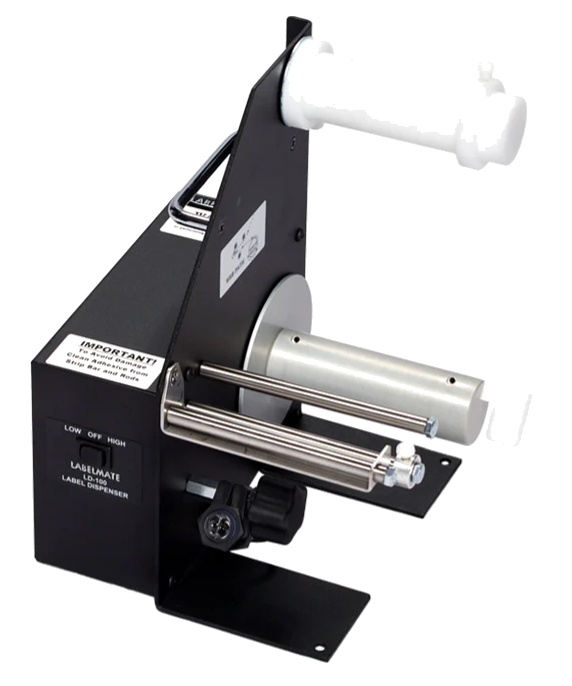

Label Mate LD-100-RS
Automatic Label Dispenser for opaque labels up to 4.5” wide
The LD-100-RS Automatic Label Dispenser from Label Mate peels and presents labels effortlessly. Labels are presented at the front of the machine and wait for the operator to remove and apply them. As soon as a label is removed, another is immediately peeled and presented.
Specifications
Label Type: Opaque
Max. Label Width: 4.5” (114mm)
Max. Roll Diameter: 8.5” (220mm)
Finish: Black Powder-Coated Steel
Warranty: 3-Year Parts & Labor Limited Warranty
Shipping Information
Size: 15”x12”x12” (380x305x305mm)
Weight: 14 lbs. (6.4 kg)
Downloads

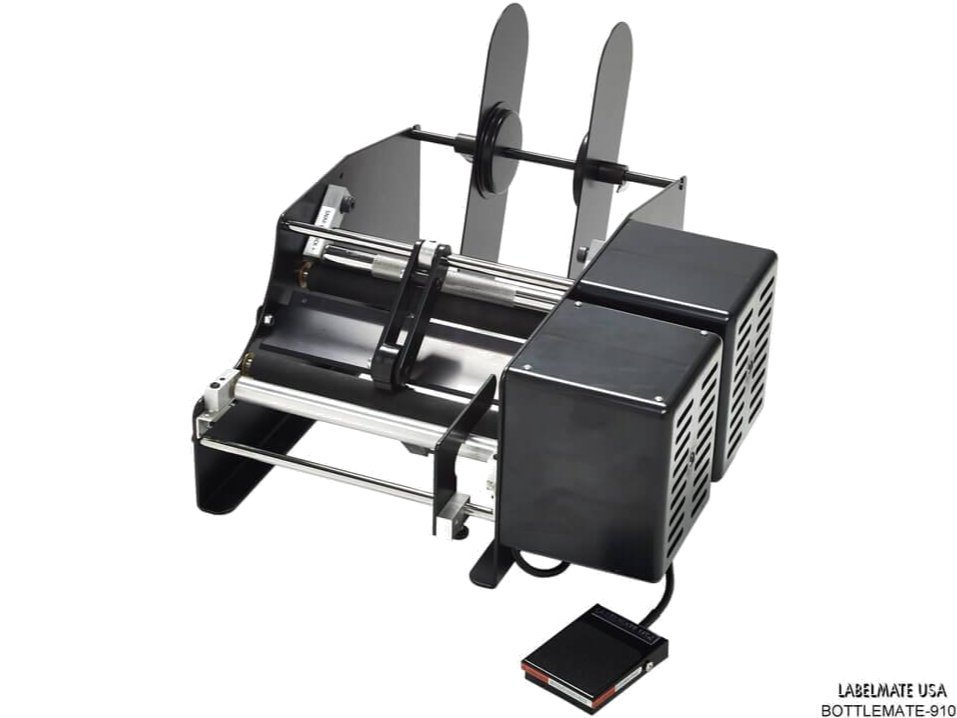

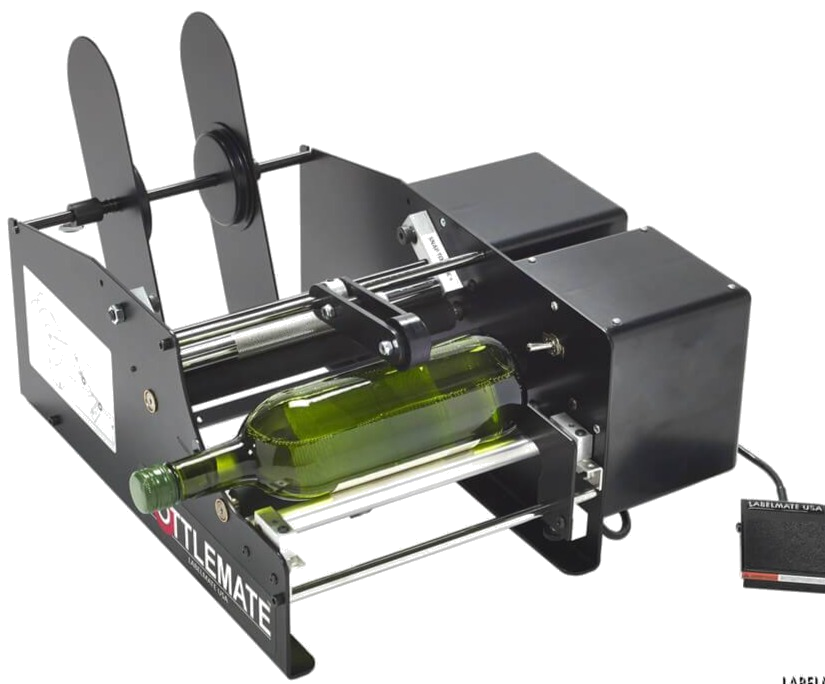

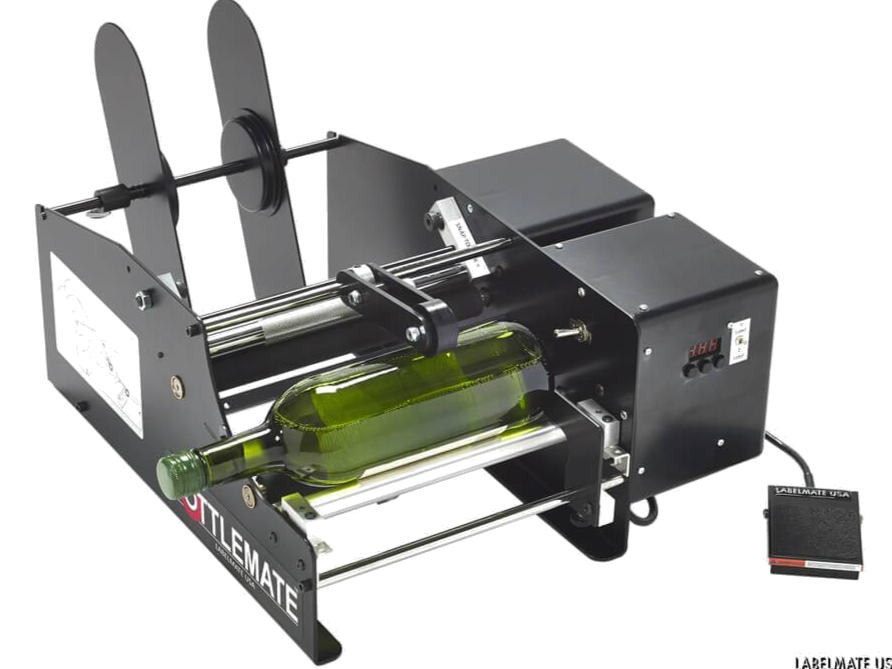

Label Mate BOTTLEMATE-910
Automatic Label Applicator for labels up to 9” wide
The Bottlemate 910 is the perfect entry-level solution for quickly and accurately labeling all types of cylindrical containers by simply inserting the container and pressing a footswitch. Labels are applied at over 4.5” (114mm) per second, and most items are labeled in less than 2 seconds. Once a rhythm is established, you can label containers at speeds of up to 1,200 pcs per hour.
Available Options (Purchased Separately - see "Related Products" below):
BMR-6 Waste Liner Rewinder
AUTO-MATE Automatic Labeling Sensor (eliminates need for Footpedal)
BMC-1 Counter.
Specifications
Max. Label Width: 9” (228mm)
Labels per Bottle: 1
Max. Bottle Diameter: 6” (153mm)
Min. Bottle Diameter: 0.5” (13mm)
Label Type: Opaque & Transparent, with gaps in between
Max. Label Roll Diameter: 10” (254mm)
Warranty: 3-Year Parts & Labor Limited Warranty
Shipping Information
Size: 20”x19”x10” (508x482x254mm)
Weight: 32 lbs. (14.5 kg)
Downloads

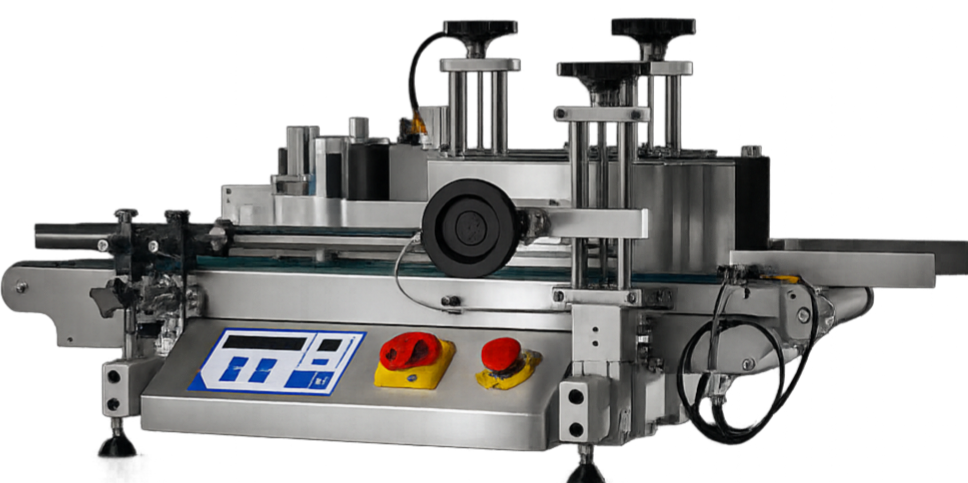

ELF-50
Full automation for small to medium size containers at an affordable price
Pack Leader ELF-50 labelling cannabis containers
Pack Leader ELF-50 with 3-point turn for front-and-back labels
Overview:
The ELF-50 is a versatile tabletop labeling machine designed for small to medium-sized production runs. Its compact design and user-friendly features make it an excellent choice for businesses seeking efficient and precise labeling solutions.
Key Specifications:
Label Type: Wrap-Around
Maximum Dispensing Speed: 52.5 ft/min (16 m/min), 60 containers/min
Maximum Conveyor Speed: 32.8 ft/min (10 m/min), 60 containers/min
Dimensions (L x W x H): 43.3” x 34.3” x 20” (1100mm x 870mm x 508mm)
Maximum Label Size: 4.75” x 11.8” (120mm x 300mm)
Maximum Container Width: 6.3” (152.4mm)
Conveyor Width: 6” (152.4mm)
Spool Diameter: 10” (254mm)
Inner Core: 3” (76mm)
Power: 110/220 VAC, 50/60 Hz, 1 Phase; 0.460 kW; 2 Phase Stepper Motor
Net Weight: Approx. 165 lbs (75 kgs)
Features:
Portability: Can be positioned on a tabletop or bench, or moved in-line for automatic or semi-automatic applications.
User-Friendly: One-button teach product and label sensors; manual position setting for accurate label placement.
Upgradable: Can be upgraded to activate hot-foil printer controls for label customization.
Productivity Features: Production preset function, label count feature, and container/production run counter.
Memory Retention: Battery-free microprocessor control system that maintains default settings and memory even after the machine sits idle for a long period.
Durability: Made of 304 stainless steel and anodized aluminum, ensuring longevity and compliance with Good Manufacturing Practices (GMP) standards.
Ideal Applications:
Perfect for small-scale production in industries such as food, beverage, cosmetics, and pharmaceuticals.
Downloads

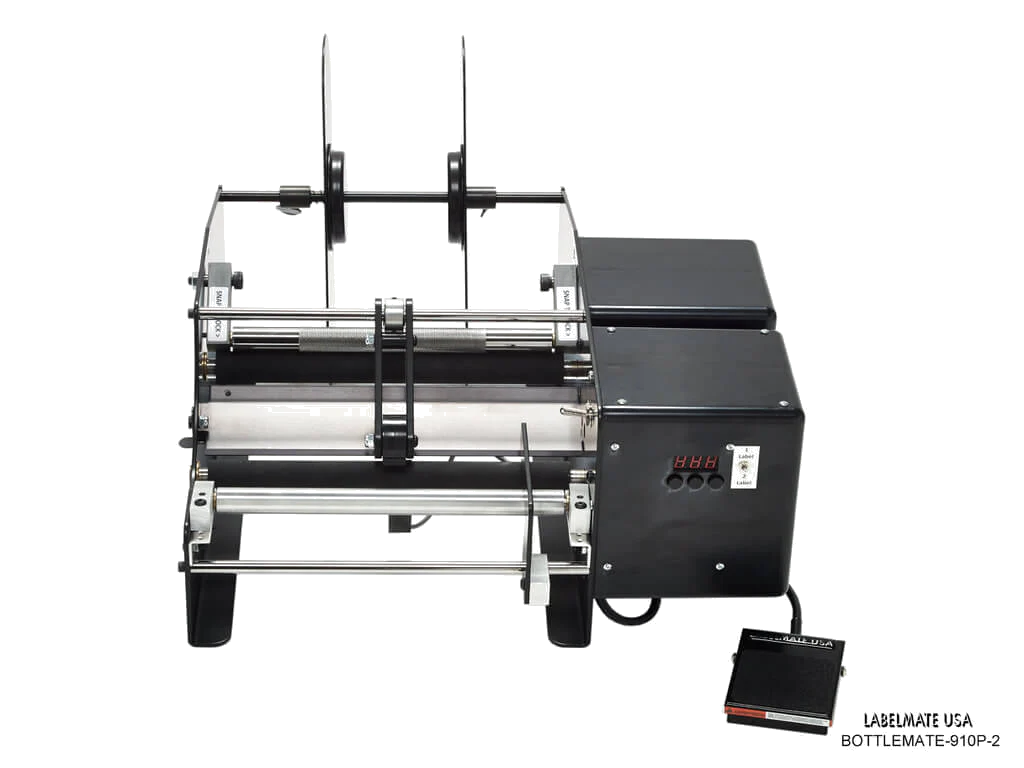

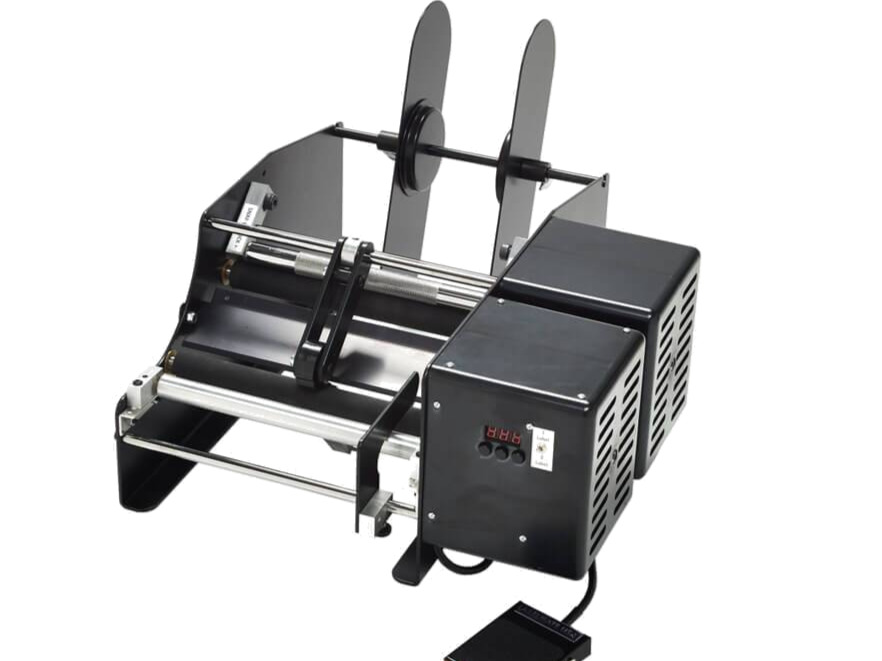

Label Mate BOTTLEMATE-910-2
Automatic Label Applicator for labels up to 9” wide
The Bottlemate 910-2 is the perfect solution for quickly and accurately labeling all types of cylindrical containers by simply inserting the container and pressing a footswitch. This machine will apply either one or two labels per bottle (switch selectable). Front and back labels must be alternating on the roll when applying two labels per bottle. Labels are applied at over 4.5” (114mm) per second, and most items are labeled in less than 2 seconds. Once a rhythm is established, you can label containers at speeds of up to 1,200 pcs per hour.
Available Options (Purchased Separately - see "Related Products" below):
BMR-6 Waste Liner Rewinder
AUTO-MATE Automatic Labeling Sensor (eliminates need for Footpedal)
BMC-1 Counter
Specifications
Max. Label Width: 9” (228mm)
Labels per Bottle: 1 or 2 (switch selectable)
Max. Bottle Diameter: 6” (153mm)
Min. Bottle Diameter: 0.5” (13mm)
Label Type: Opaque & Transparent, with gaps in between
Max. Label Roll Diameter: 10” (254mm)
Warranty: 3-Year Parts & Labor Limited Warranty
Shipping Information
Size: 20”x19”x10” (508x482x254mm)
Weight: 32 lbs. (14.5 kg)
Downloads

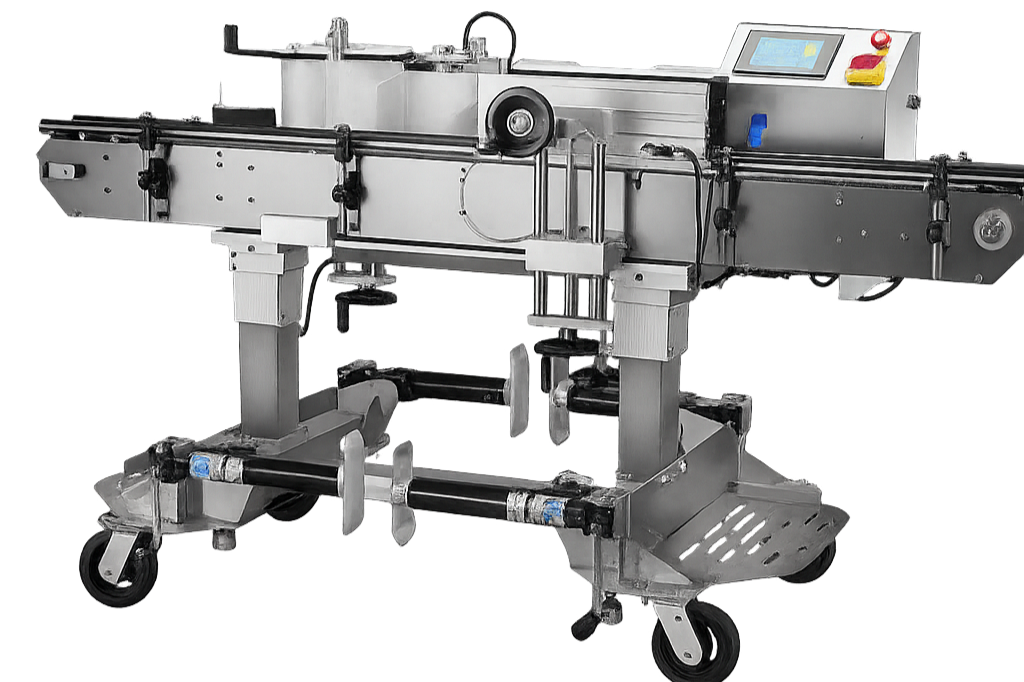

PL-501
High-speed application for labels up to 6”
Overview:
The PL-501 is a fully automatic labeling machine designed for round containers, offering exceptional speed, flexibility, and dependability. It's ideal for high-volume production environments requiring consistent and accurate labeling.
Key Specifications:
Label Type: Wrap-Around (One Side Apply Optional)
Maximum Dispensing Speed: 131.2 ft/min (40 m/min)
Maximum Conveyor Speed: 72.2 ft/min (22 m/min)
Dimensions (L x W x H): 79” x 40” x 41” (2006mm x 1016mm x 1041mm)
Maximum Label Size: 6” x 11.8” (152mm x 300mm)
Maximum Container Width: 4” (101mm) standard; 6” (152mm) optional
Conveyor Belt Width: 3.25” (82.55mm)
Conveyor Height: Adjustable from 31.75” to 47.75” (806mm to 1213mm)
Spool Diameter: 14” (356mm)
Inner Core: 3” (76mm)
Power: 110/220 VAC, 50/60 Hz, 1 Phase; 0.760 kW; Stepper Motor
Net Weight: Approx. 330 lbs (150 kgs)
Features:
Flexible Design: Easily adjusts to apply labels to round containers; one-touch screen for label application.
User-Friendly: Built-in operating instructions, memory presets, and troubleshooting guide.
Easy Maintenance: Constructed from 304 stainless steel and anodized aluminum for durability and compliance with Good Manufacturing Practices (GMP).
Advanced Controls: Delta color touchscreen interface; up to 30 job memory presets.
Productivity Enhancements: Auto label-set feature, missing label detection, and production counters.
Portability: Adjustable conveyor height and mobility for flexible production setups.
Ideal Applications:
Suitable for labeling a wide range of round containers in industries such as food, beverage, cosmetics, and pharmaceuticals.
Downloads

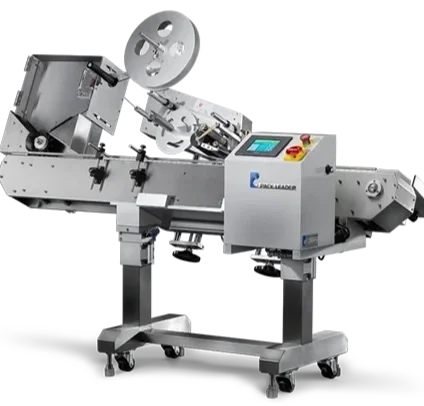

PL-521
Horizontal labeling of slim, non-freestanding cylindrical containers
Pack Leader PL521 labelling pre-roll tubes
Overview:
The PL-521 is designed for horizontally labeling slim, non-freestanding cylindrical containers such as pre-roll tubes, pens, test tubes, syringes, and lipsticks. Its angled roller conveyor secures the product on its side for precise label application. Ideal for small- to mid-sized production in food, beverage, cosmetics, and pharmaceutical industries.
Features:
Flexible Operation: Can be used in semi-automatic or inline automatic configurations.
User-Friendly: One-button teach product and label sensors, manual position adjustment, and touchscreen interface with up to 30 memory presets.
Accuracy & Efficiency: Auto label-set, missing label detection, synchronized stepper motors for precise label placement, production counters.
Portability & Adjustability: Height-adjustable conveyor; easily moved to different production areas.
Durable Construction: 304 stainless steel and anodized aluminum, GMP and ISO 9001 compliant.
Key Specifications:
Label Type: Wrap-Around
Maximum Dispensing Speed: 131.2 ft/min (40 m/min)
Maximum Conveyor Speed: 72.2 ft/min (22 m/min)
Dimensions (L x W x H): 78” x 42” x 64” (1981mm x 1067mm x 1626mm)
Maximum Label Size: 6” x 3” (152mm x 75mm)
Bottle Diameter: 0.3” – 1” (7.6mm – 25mm)
Container Length Range: 0.25” – 6” (6.5mm – 152mm)
Conveyor Width: 4” (102mm)
Conveyor Height: 34–44” (864–1118mm)
Spool Diameter: 14” (356mm)
Inner Core: 3” (76mm)
Power: 110/220 VAC, 50/60 Hz, 1 Phase; 0.840 kW; Stepper Motor
Net Weight: Approx. 385 lbs (175 kgs)
